Wagner Tuning Evo 1 Intercooler Kit Ford Focus MK3 RS

Wagner Tuning Evo 1 Intercooler

Fitment:

• Ford Focus MK3 RS 2.3L Eco Boost

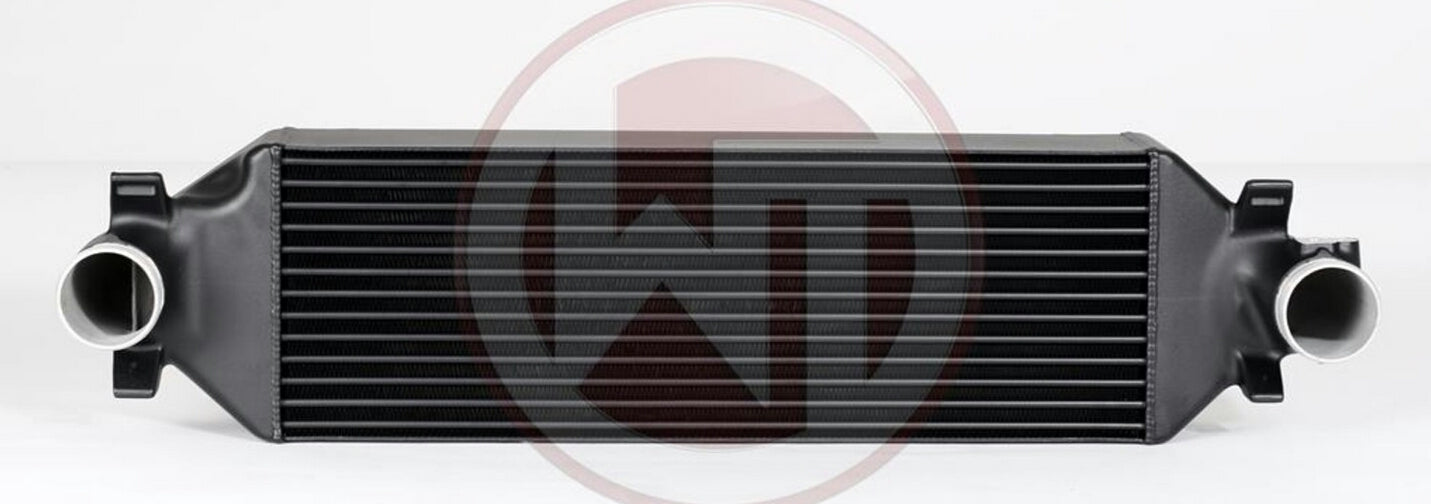

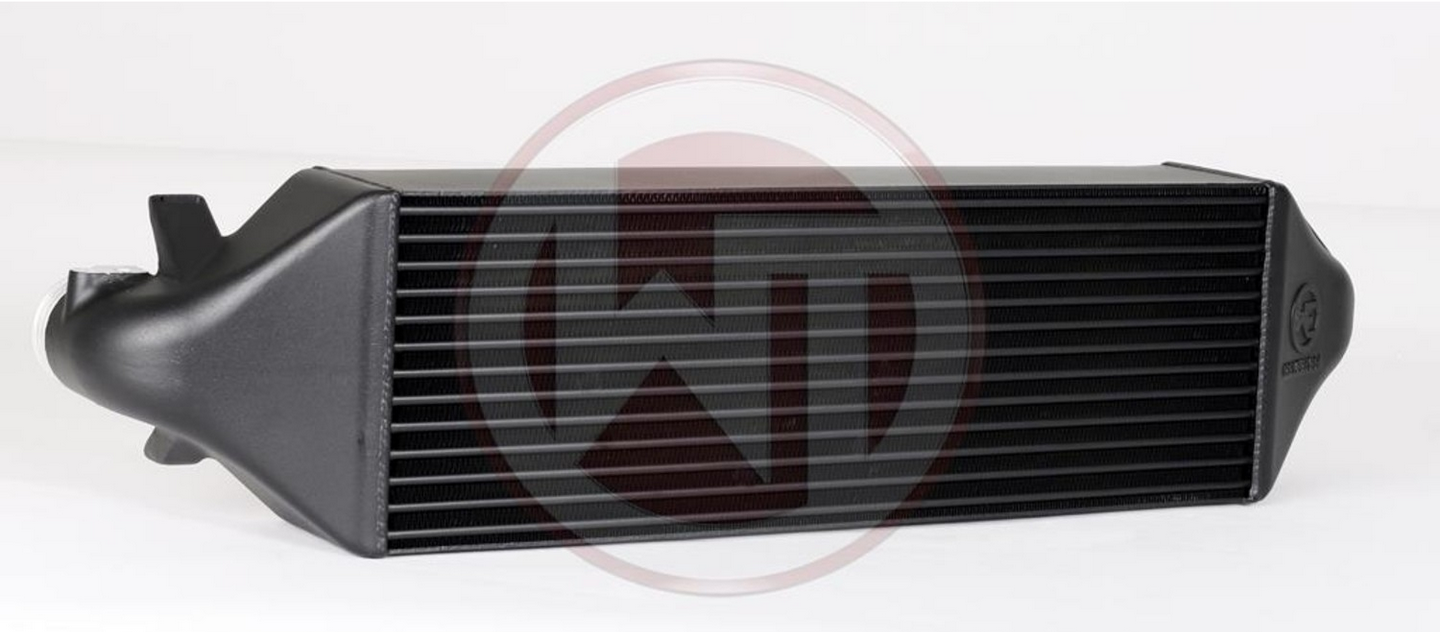

The Wagner Competition Intercooler for the Ford Focus MK3 RS has a 10% larger surface area and 72% more volume compared to the O.E.M intercooler. Wagner engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Competition intercooler core with turbulators weigh 9,2kg.

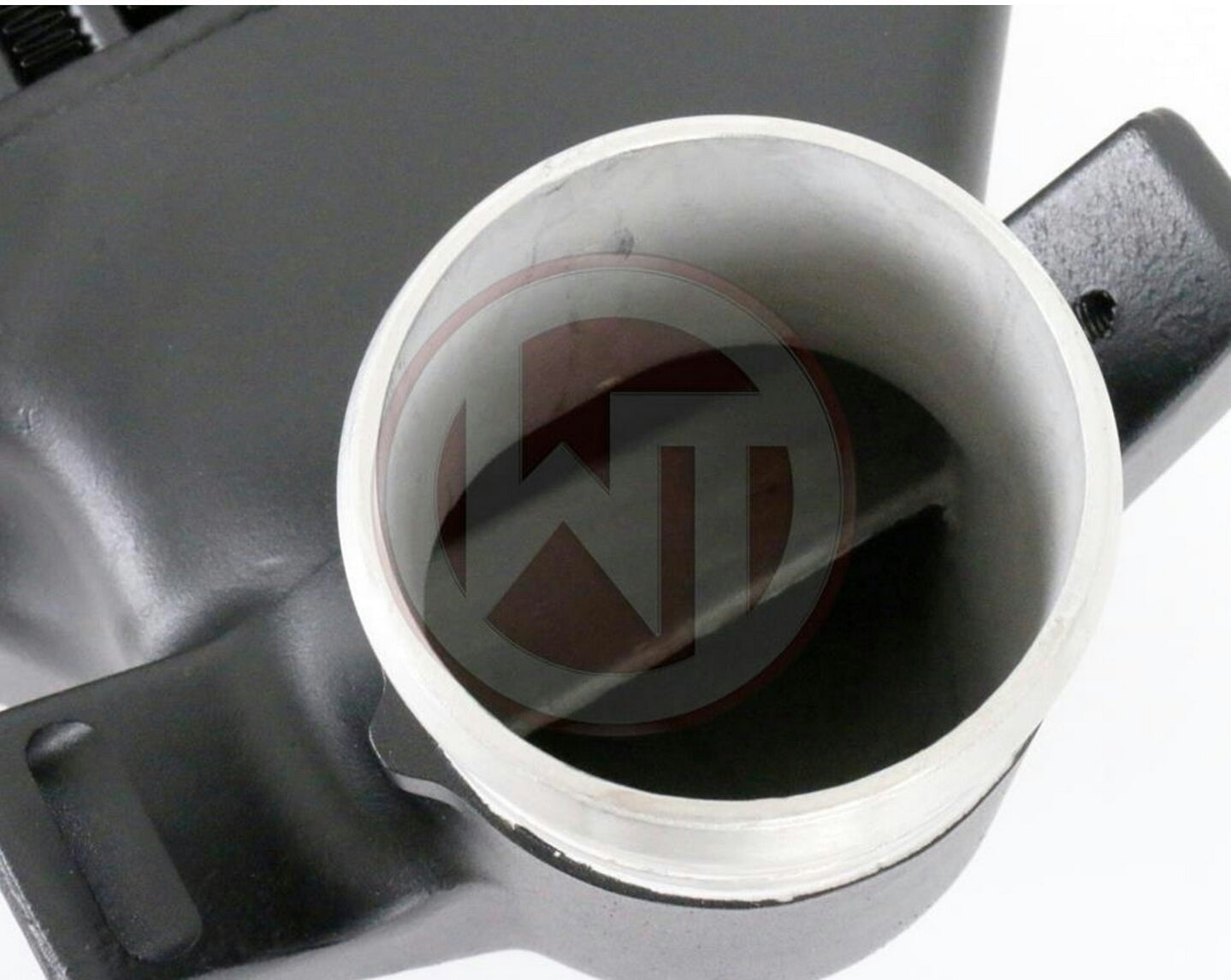

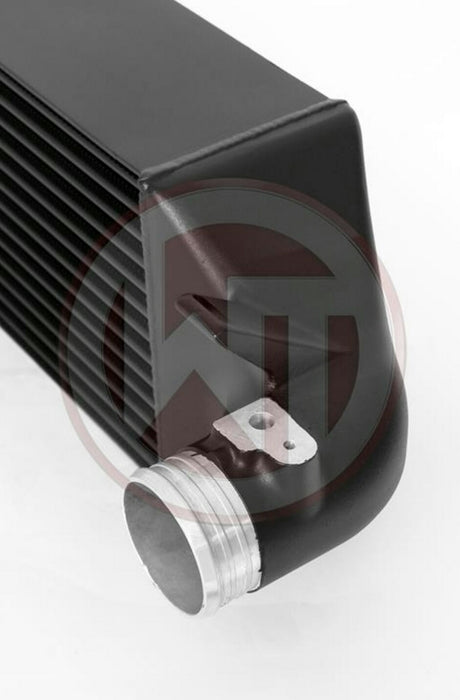

Constructed of the highest quality Tube and Fin intercooler cores combined with cast aluminum optimized by CAD. Wagner also increased inlet and outlet to 70mm. This intercooler is protected by an Anti corrosion coating with perfect thermal heat dissapating characteristics. The result is excellent cooling properties with minimum back pressure and clearly more power. Direct bolt on, no cutting required.

Dimensions of O.E Intercooler:
615mm x200mm x 80mm
V=9,84 Liter
A=1230 cm²

Dimensions of Wagner Intercooler:
630mm x 215mm x125mm
V=16,9 Liter
A=1355 cm²

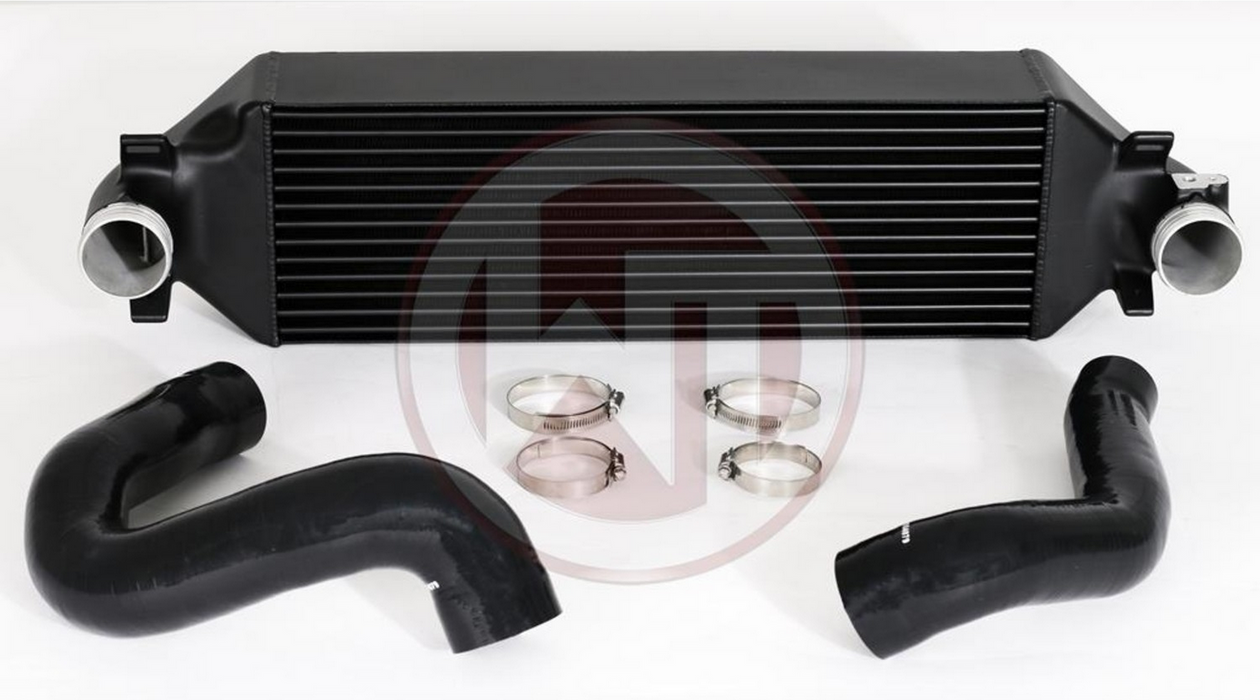

Package consists of:
1x Intercooler
2x Silicone hoses with hose clamps
1x Installation manual

Product code: 200001090
